Quick Details:
＊ Installation with T5/T8 LED lamp;
＊ Quality light-diffuser PC cover, ABS or PC housing;
＊ Wetproof, dustproof, blastproof;
＊ 0.6M, 1.2M, 1.5M, 2.4M length for choice.
1. Advantages
1) Waterproof cable gland on side of the housing for better waterproof property; Natural silicon gel gasket, plastic locking clips or stainless steel locking;
2) Quality light-diffuser PC cover, and ABS or PC housing for choice;
3) Unitue light-prismatic diffuser cover, better light uniformatiy and antiglare performance;
4) Plastic gear tray holder connected to housing, and very convenient for installation and maintenance;
5) Available for T8 or T5 LED Tube light or fluorescent lamp.
2. Parameters
0.6M Triproof Lamp Fixture
| Model No. | SL-TLF15D |
| Triproof Light Fixture (For 2PCS Tube Light) | Optional Lamp (2PCS) |
| Product Size | 1578*129*90 MM | Type | T8 LED Tube Light |
| LF Size | 970 MM | Size | L1500*￠26 MM |
| Locking Clips | 12 PCS | Power | 35W |
| Shell Material | ABS or PC | Input Voltagae | AC85-265V; DC/AC12-24V |
| PC Cover Material | PC | Led Type | SMD2835, 168PCS |
| N.W. / PCS | 2.13 KGS | PF | >0.92 |
| Qty / Carton | 4 PCS | Luminous Flux | 2,900-3,100Lm |
| Carton Size | 1580*160*290 MM | Color Temp.(CCT) | 2,800-7,000K (Optional) |
| G.W. | 10.6 KGS | CRI | >70Ra or >80Ra |
| Remark | Installation with 2PCS T5 / T8 LED tube or fluorescent tube. | Tube Material | Aluminum Alloy and PC |
| Warranty | 2 Years |
3. Application

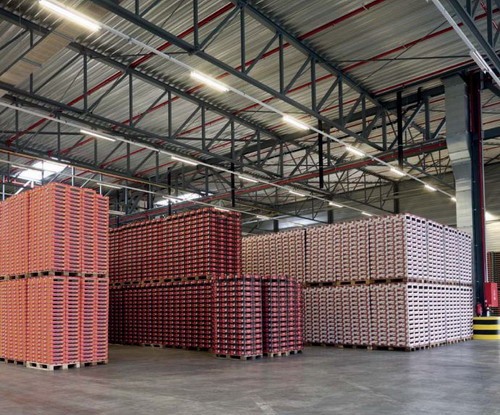

With Better weatherproof, blastproof dustproof features, widely used for many place, such as factory, warehouse, sports center, supermarket, subway, tunnel, kitchen, bathroom,store, overpasses, garage.
|
|
1.5M Triproof Lamp Fixture / D Series Images
|
